JRC NRD-535D
| Type: |
Shortwave Receiver |
| Frequency Range: |
90 KHz-30 MHz |
| Modes: |
AM/USB/LSB/CW/RTTY/FAX/FM |
| Sensitivity: |
.5 µV 1.6-30 MHz SSB/CW S+N/N=10dB |
| Selectivity: |
N/A |
| Image rejection: |
70 dB (1.6 - 30 MHz) |
| Voltage: |
100/120/220/240 VAC 50/60 Hz 35VA max
12 VDC 25W max |
| Current Drain: |
? mA |
| Aerial Input: |
50 or 600 ohmSelectivity (-6dB) ... AUX (12 kHz) |
| Dimensions (W*H*D): |
330 x 130 x 280 mm |
| Weight: |
8.5 Kg |
| Manufactured: |
1991-1998 |
| Other: |
|
| Related Documents: |
|

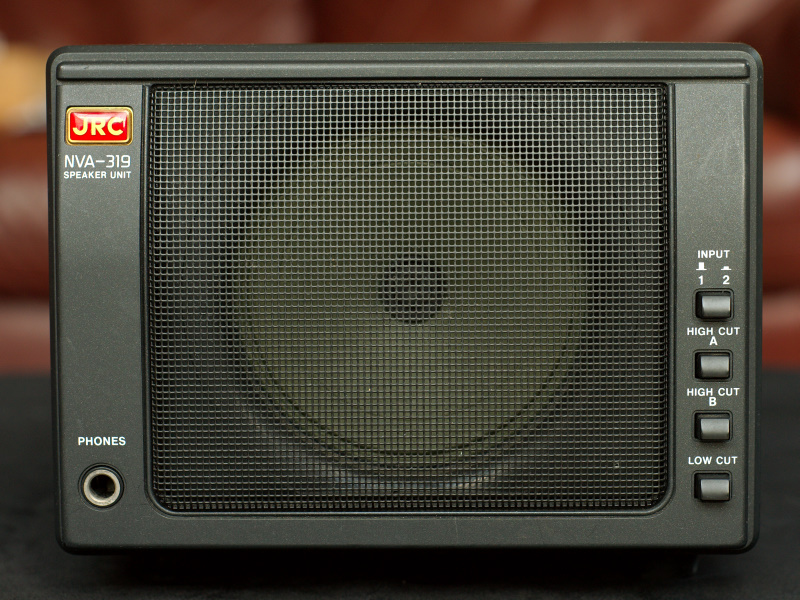

Matching Speaker:
 |
